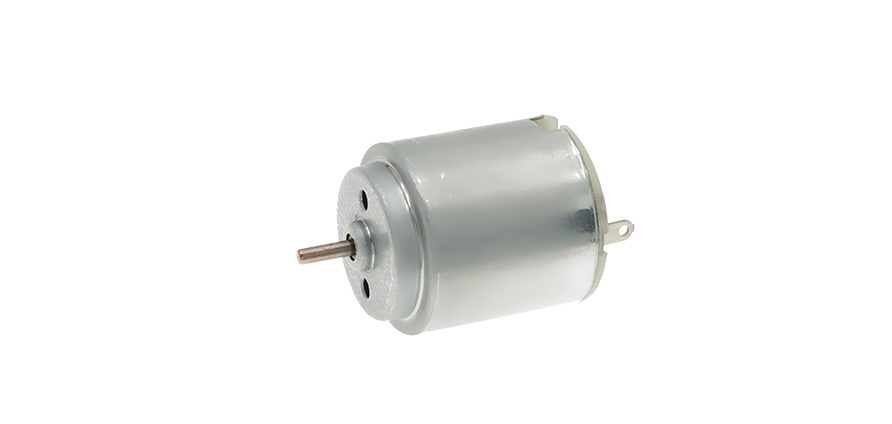

R260C

All our motors are manufactured with the highest standard. Our stringent quality assurance process guarantees peak performance for every motor from day one.

Motor Details

Model : R260C-NN-16180
Voltage: 6.0V
No Load Max Efficiency Max Output Stall
Current (A) 0.094 0.366 0.758 1.422
Speed (rpm) 9636 7665 4818 N/A
Torque (g.cm) N/A 16.0 39.0 78.0
Efficiency (%) N/A 57.2 N/A N/A
Output (W) N/A N/A 1.93 N/A
Model : R260C-NN-16180
Voltage: 6.0V
No Load Max Efficiency Max Output Stall
Current (A) 0.094 0.366 0.758 1.422
Speed (rpm) 9636 7665 4818 N/A
Torque (g.cm) N/A 16.0 39.0 78.0
Efficiency (%) N/A 57.2 N/A N/A
Output (W) N/A N/A 1.93 N/A
Model : R260C-NN-18130
Voltage: 3.0V
No Load Max Efficiency Max Output Stall
Current (A) 0.106 0.362 0.672 1.237
Speed (rpm) 6622 5122 3311 N/A
Torque (g.cm) N/A 9.5 21.0 41.9
Efficiency (%) N/A 45.9 N/A N/A
Output (W) N/A N/A 0.71 N/A
Model : R260C-NN-18130
Voltage: 3.0V
No Load Max Efficiency Max Output Stall
Current (A) 0.106 0.362 0.672 1.237
Speed (rpm) 6622 5122 3311 N/A
Torque (g.cm) N/A 9.5 21.0 41.9
Efficiency (%) N/A 45.9 N/A N/A
Output (W) N/A N/A 0.71 N/A
Model : R260C-NN-18130
Voltage: 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.114 0.436 0.891 1.667
Speed (rpm) 9954 7891 4977 N/A
Torque (g.cm) N/A 14.6 35.3 70.6
Efficiency (%) N/A 60.4 N/A N/A
Output (W) N/A N/A 1.80 N/A
Model : R260C-NN-18130
Voltage: 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.114 0.436 0.891 1.667
Speed (rpm) 9954 7891 4977 N/A
Torque (g.cm) N/A 14.6 35.3 70.6
Efficiency (%) N/A 60.4 N/A N/A
Output (W) N/A N/A 1.80 N/A
